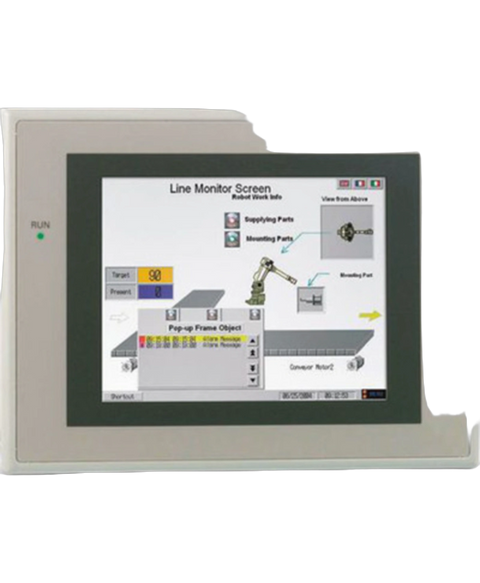

Omron NS8-TV00-V2
The Omron NS8-TV00-V2 model is an HMI touch panel designed for visual interfacing. It features an 8.4-inch TFT display with a 640 x 480 dots resolution, providing clarity in graphics and user interaction.
This Omron NS8-TV00-V2 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805563646.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Omron |
| Product Type | HMI (Human Machine Interface) Touch Panel |
| Product Line | NS |
| Part Number | NS8-TV00-V2 |
| Weight | 4.44 lbs (2.01 kg) |
| Display Type | 8.4 inches TFT (Thin Film Transistor) LED backlight display |
| Number of Dots | 640 x 480 dots |
| Ethernet Port | Not available |
| Power Supply Voltage Rating | 24 Volts DC |
| Protection Class | IP65 (Water and dust-resistant) |
| Ambient Operating Temperature | 0 to 40°C in a non-freezing environment |
| Display Color | 256 colors |
| Backlight Life | 50,000 hours (minimum) |
| Vibration Resistance | 9.8 meter per second squared in X, Y, and Z-axes |
| Humidity Tolerance | 35% to 85% in a non-condensing environment |
| Screen Data Capacity | 60 megabytes |
| Compliance Standard | EC, cUL, NEMA, C1D2, and UL 1604 certified |
| Case Color | Ivory |
| Brand | Omron |
