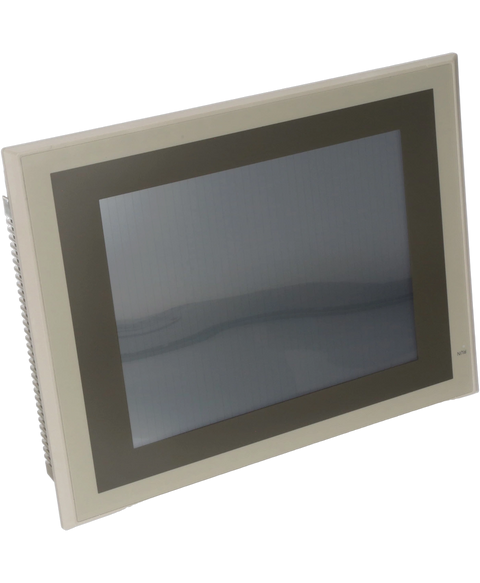

Omron NS10-TV00-V2
The Omron NS10-TV00-V2 is a capable human-machine interface touch panel featuring a 10.4-inch TFT LCD with a resolution of 640 x 480 pixels. It operates on a power supply voltage rating of 24 volts DC, delivering robust performance in various applications.
This Omron NS10-TV00-V2 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805643307.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Omron |
| Product Type | HMI (Human Machine Interface) Touch Panel |
| Product Line | NS |
| Part Number | NS10-TV00-V2 |
| Weight | 5.13 lbs (2.32 kg) |
| Power Supply Voltage Rating | 24 Volts DC |
| Case Color | Ivory |
| Screen Data Capacity | 60 megabytes |
| Number of Dots | 640 x 480 dots |
| Display Type | 10.4 inches TFT (Thin Film Transistor) LCD |
| Protection Class | IP65 (Water and dust-resistant) |
| Ambient Operating Temperature | 0 to 40°C |
| Ethernet Port | Not available |
| Humidity Tolerance | 35% to 85% in a non-condensing environment |
| Touch Panel Method | Resistive membrane |
| Backlight Life Expectancy | 50,000 hours (minimum) |
| Display Color | 256 colors |
| Safety Standards | UL, cUL, EC Directives, and CE-certified |
| Brand | Omron |
