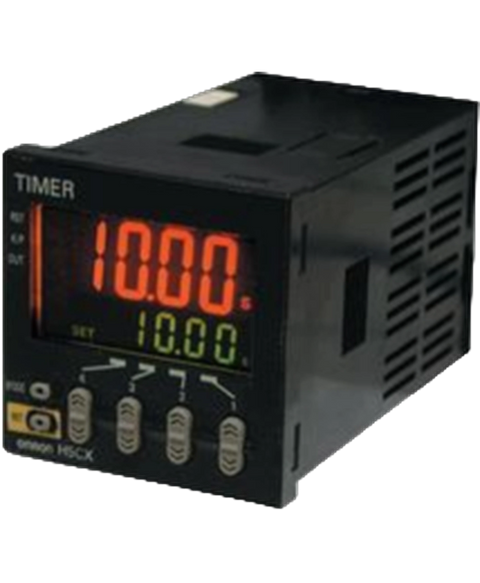

Omron H5CXAN
Timer DIN 48x48 mm IP66 4 preset & 4 actual time digits multi range 0.01 s to 9999 h (10 ranges) multifunction NPN,PNP,No voltage input selectable SPDT 5 A relay output 100-240 VAC supply includes color change display function
This Omron H5CXAN is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controllers > Counters range and is referenced internally as PartLogic SKU PL26801447274.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | 100 |
| Character Height | 11.5 mm |
| Current Rating | 100 mA |
| Depth | 84 mm |
| Display Type | LCD |
| Length | 48 mm |
| Max Current Rating | 5 A |
| Max Operating Temperature | 55 °C |
| Max Supply Voltage (AC) | 240 V |
| Min Operating Temperature | -10 °C |
| Min Supply Voltage (AC) | 100 V |
| Mount | Flush, Panel |
| Number of Contacts | 1 |
| Number of Inputs | 3 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 240 V |
| Power Consumption | 6.2 W |
| Ratings | IP66 |
| Relay Type | Integrated |
| RoHS | Compliant |
| Termination | Screw |
| Throw Configuration | SPDT |
| Width | 48 mm |
