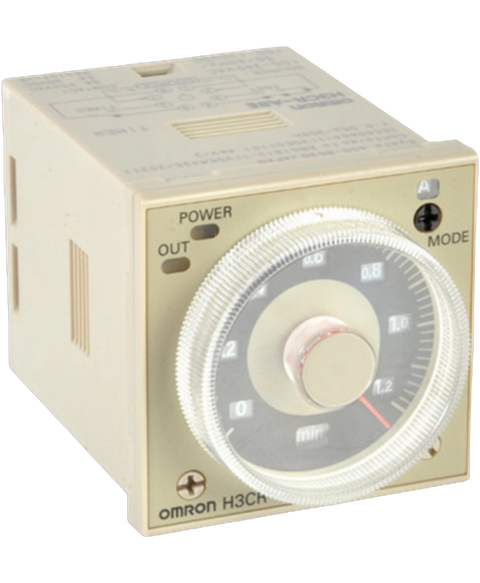

Omron H3CR-A8E
Omron H3CR-A8E timer relay, multifunction, 0.05s to 300h.
This Omron H3CR-A8E is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controllers > Timers range and is referenced internally as PartLogic SKU PL27190874178.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Accuracy | 0.2 % |
| Coil Voltage (AC) | 240 V |
| Coil Voltage (DC) | 125 V |
| Current Rating | 5 A |
| Depth | 81.6 mm |
| Length | 48 mm |
| Max Current Rating | 5 A |
| Max Operating Temperature | 55 °C |
| Max Supply Voltage (AC) | 240 V |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 30 V |
| Min Operating Temperature | -10 °C |
| Mount | DIN Rail, Flush, Panel, Plug-In |
| Number of Contacts | 2 |
| Number of Pins | 8 |
| Operating Supply Voltage | 240 V |
| Power Consumption | 1.6 W |
| REACH SVHC | Unknown |
| Relay Type | Integrated |
| RMS Current (Irms) | 5 A |
| RoHS | Compliant |
| Termination | Circular |
| Throw Configuration | SPDT |
| Weight | 90 g |
| Width | 48 mm |
