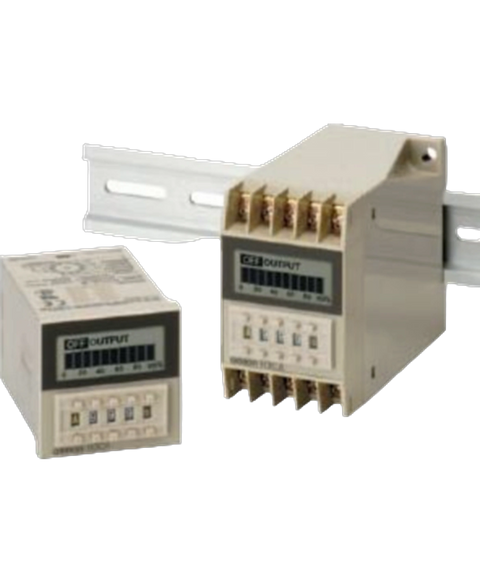

Omron H3CA-A
Digital timer, solid-state, size 1,16 DIN, lcd 3 digit display, 0.1 seconds - 9990 hour range, 8 field-selectable operation modes, spdt time limit contact, open short circuit input, 24-240VAC , 12-240VDC supply, 11-pin round, socket mount
This Omron H3CA-A is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controllers > Timers range and is referenced internally as PartLogic SKU PL26801467310.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, CSA, UL |
| Coil Voltage (AC) | 240 V |
| Coil Voltage (DC) | 240 V |
| Contact Current Rating | 3 A |
| Current Rating | 3 A |
| Depth | 48 mm |
| Display Type | LCD |
| Lead Free | Lead Free |
| Length | 48 mm |
| Max Current Rating | 3 A |
| Max Operating Temperature | 55 °C |
| Max Voltage Rating (AC) | 250 V |
| Min Operating Temperature | -10 °C |
| Mount | Panel, Socket |
| Number of Pins | 10 |
| Operating Supply Voltage | 240 V |
| Output Current | 3 A |
| Packaging | Bulk |
| Power Consumption | 4 W |
| Relay Type | Integrated |
| RoHS | Compliant |
| Termination | Circular |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250 V |
| Weight | 110 g |
| Width | 48 mm |
