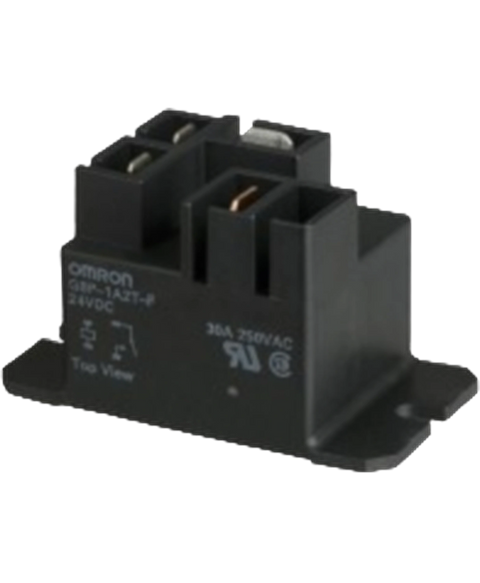

Omron G8P-1A2T-F
Omron G8P-1A2T-F-DC48 power relay, SPST-NO, 48VDC, 30A.
This Omron G8P-1A2T-F is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26801388630.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Coil Current | 19 mA |
| Coil Power | 900 mW |
| Coil Resistance | 2.48 kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 48 V |
| Contact Current Rating | 30 A |
| Contact Material | Cadmium, Silver |
| Depth | 27.7 mm |
| Height | 28.3 mm |
| Length | 50.3 mm |
| Max Current Rating | 30 A |
| Max Operating Temperature | 105 °C |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 28 V |
| Min Operating Temperature | -55 °C |
| Mount | Chassis Mount, Flanges |
| Number of Pins | 5 |
| Operate Time | 15 ms |
| REACH SVHC | Unknown |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| RoHS | Compliant |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Width | 27.7 mm |
