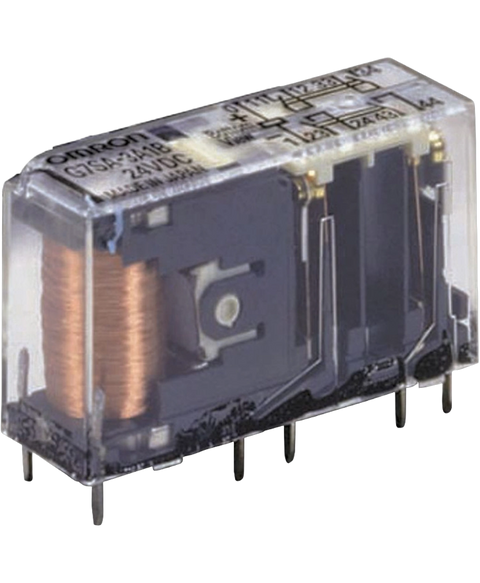

Omron G7SA-3A1B
Omron G7SA3A1B DC24 safety relay, 24VDC coil, 3PST-NO,SPST-NC, 6A, forcibly guided contacts.
This Omron G7SA-3A1B is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Safety relays range and is referenced internally as PartLogic SKU PL26801454345.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Ambient Temperature Range High | 85 °C |
| Approvals | CSA, UL, VDE |
| Coil Current | 15 mA |
| Coil Power | 360 mW |
| Coil Resistance | 1.6 kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24 V |
| Contact Current Rating | 6 A |
| Current Rating | 6 A |
| Depth | 13 mm |
| Height | 24 mm |
| Length | 40 mm |
| Max Current Rating | 6 A |
| Max Operating Temperature | 85 °C |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 125 V |
| Manufacturer Package Identifier | G7SA-3A1B DC24 |
| Min Operating Temperature | -40 °C |
| Mount | PCB, Socketable, Through Hole |
| Number of Contacts | 4 |
| Number of Pins | 4 |
| Operate Time | 20 ms |
| Packaging | Bulk |
| REACH SVHC | Unknown |
| Relay Type | Safety |
| Release Time | 10 ms |
| RoHS | Compliant |
| Schedule B | 8536490050 |
| Switching Current | 6 A |
| Termination | Plug, Solder |
| Throw Configuration | 3PST, 4PST, SPST |
| Voltage Rating (AC) | 250 V |
| Voltage Rating (DC) | 30 V |
| Weight | 22 g |
| Width | 13 mm |
