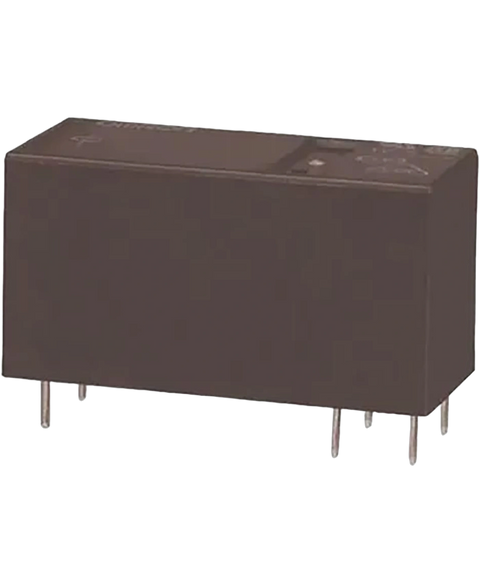

Omron G6B-1114P-FD-US-P6B
Power pcb relay
This Omron G6B-1114P-FD-US-P6B is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26805672273.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Ambient Temperature Range High | 70 °C |
| Coil Current | 8.3 mA |
| Coil Power | 200 mW |
| Coil Resistance | 2.88 kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24 V |
| Contact Current Rating | 5 A |
| Contact Material | Silver |
| Current Rating | 5 A |
| Height | 10 mm |
| Max Current Rating | 5 A |
| Max Operating Temperature | 70 °C |
| Max Voltage Rating (AC) | 380 V |
| Max Voltage Rating (DC) | 125 V |
| Manufacturer Package Identifier | G6B1114PFDUSP6BDC24 |
| Min Operating Temperature | -25 °C |
| Mount | Through Hole |
| Number of Contacts | 1 |
| Power Consumption | 200 mW |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8536490050, 8536490050|8536490050|8536490050|8536490050|8536490050 |
| Switching Current | 5 A |
| Termination | PC Pins |
| Throw Configuration | SPST |
