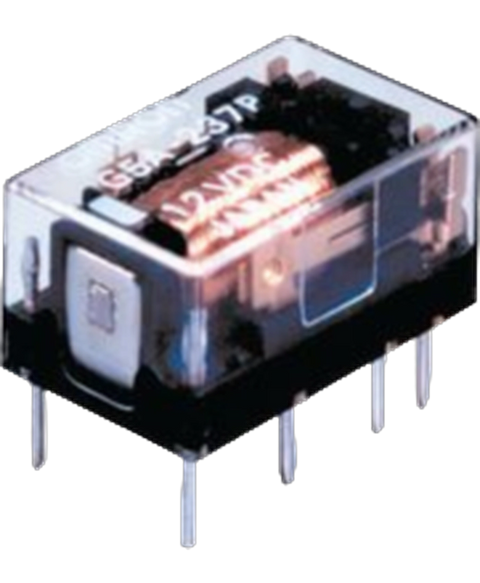

Omron G5A-237P
Discontinued by manufacturer, power,signal relay, dpdt, momentary, 0.04A (coil), 5VDC (coil), 200mw (coil), 1A (contact), 30VDC (contact), dc input, AC,DC output
This Omron G5A-237P is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26805668833.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Coil Current | 8.3 mA |
| Coil Power | 200 mW |
| Coil Resistance | 2.88 kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24 V |
| Contact Material | Gold, Silver |
| Current Rating | 8.3 mA |
| Depth | 9.9 mm |
| Lead Free | Lead Free |
| Length | 16 mm |
| Max Current Rating | 1 A |
| Max Operating Temperature | 70 °C |
| Max Voltage Rating (AC) | 125 V |
| Max Voltage Rating (DC) | 125 V |
| Min Operating Temperature | -40 °C |
| Mount | Through Hole |
| Number of Pins | 8 |
| Operate Time | 5 ms |
| Power Consumption | 200 mW |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| RoHS | Compliant |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125 V |
| Weight | 3.12 g |
