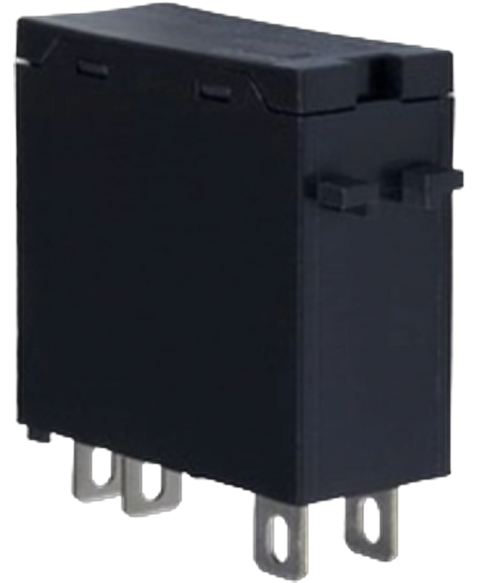

Omron G3RODX02SN
Solid state relay, output module, 2A, 5-48 V DC load power supply, 4 blades, plug-in terminals, w,indicator
This Omron G3RODX02SN is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Solid state relays range and is referenced internally as PartLogic SKU PL26981725419.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | Module |
| Color | Black |
| Depth | 13 mm |
| Height | 29 mm |
| Input Current | 8 mA |
| Isolation Voltage | 4 kV |
| Lead Free | Lead Free |
| Length | 28 mm |
| Load Current | 2 A |
| Max Input Current | 8 mA |
| Max Operating Temperature | 80 °C |
| Max Output Current | 2 A |
| Max Output Voltage | 60 V |
| Max Supply Voltage | 60 V |
| Min Operating Temperature | -30 °C |
| Min Supply Voltage | 4 V |
| Mount | DIN Rail |
| Operating Supply Voltage | 60 V |
| Output Current | 2 A |
| Output Voltage | 60 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Termination | Plug |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 2 ms |
| Turn-On Delay Time | 1 ms |
| Width | 13 mm |
