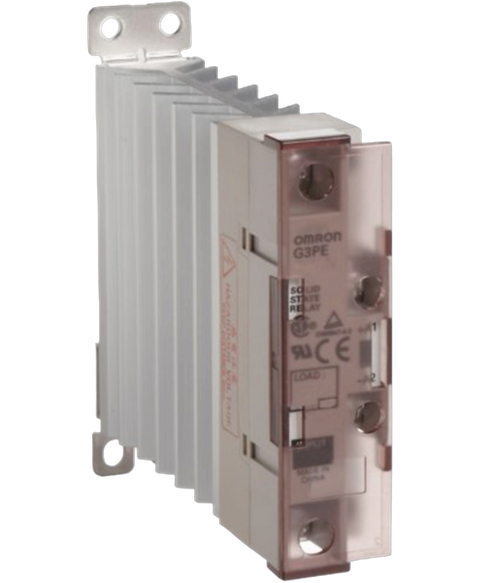

Omron G3PE-215B
Solid state relay, 1-phase, 15A, input: 12-24VDC, load: 100-240VAC, 50,60Hz, w, heatsink, DIN rail mount, screw terminal
This Omron G3PE-215B is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Solid state relays range and is referenced internally as PartLogic SKU PL26801364629.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | Module |
| Current Rating | 15 A |
| Depth | 130 mm |
| Height | 100 mm |
| Input Current | 7 mA |
| Isolation Voltage | 2.5 kV |
| Length | 22.5 mm |
| Load Current | 15 A |
| Max Input Voltage | 24 V |
| Max Operating Temperature | 80 °C |
| Max Output Voltage | 264 V |
| Max Supply Voltage (DC) | 30 V |
| Max Voltage Rating (DC) | 30 V |
| Min Input Voltage | 12 V |
| Min Operating Temperature | -30 °C |
| Min Supply Voltage (DC) | 9.6 V |
| Mount | DIN Rail, Screw |
| Operating Supply Voltage | 30 V |
| Output Current | 15 A |
| Packaging | Bulk |
| Radiation Hardening | No |
| REACH SVHC | No |
| Relay Type | Relay |
| RoHS | Compliant |
| Termination | Screw |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 1 ms |
| Turn-On Delay Time | 1 ms |
| Voltage Rating (AC) | 240 V |
