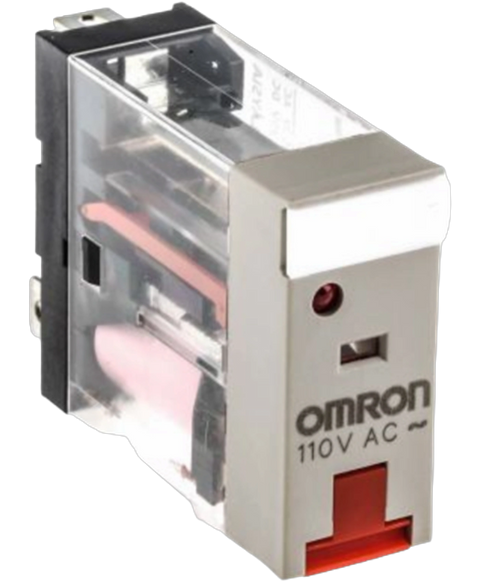

Omron G2R-1-SN AC110(S)
Power relay, SPDT, 10A, 125VDC.
This Omron G2R-1-SN AC110(S) is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26801442183.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Coil Current | 8.2 mA |
| Coil Power | 900 mW |
| Coil Resistance | 5.5 kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 110 V |
| Contact Current Rating | 10 A |
| Contact Material | Silver |
| Height | 35.5 mm |
| Length | 29 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Mount | Socketable |
| Operate Time | 15 ms |
| Packaging | Bulk |
| Ratings | IP40 |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| RoHS | Compliant |
| Switching Capacity | 2.5 kW |
| Switching Current | 10 A |
| Termination | Plug |
| Throw Configuration | SPDT |
| Width | 13 mm |
