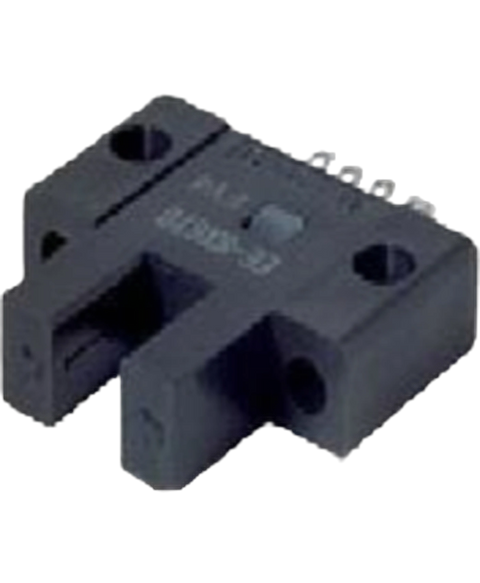

Omron EE-SX674
Omron EE-SX674 slot sensor, 5mm, NPN.
This Omron EE-SX674 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors > Slot type range and is referenced internally as PartLogic SKU PL26801462269.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Height | 15.5 mm |
| Housing Material | Polybutylene |
| Input Current | 35 mA |
| Lead Free | Lead Free |
| Length | 13.4 mm |
| Max Collector Current | 100 mA |
| Max Operating Temperature | 55 °C |
| Max Supply Voltage | 24 V |
| Max Supply Voltage (DC) | 24 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage | 5 V |
| Min Supply Voltage (DC) | 5 V |
| Mount | Chassis Mount, Panel |
| Number of Channels | 1 |
| Number of Pins | 4 |
| Operating Supply Current | 35 mA |
| Operating Supply Voltage | 24 V |
| Output Configuration | Dark-On |
| Output Current | 100 mA |
| Output Type | Phototransistor |
| Output Voltage | 800 mV |
| Ratings | IP50 |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Sensing Distance | 5.0038 mm |
| Termination | Connector |
| Wavelength | 940 nm |
| Width | 25.3 mm |
