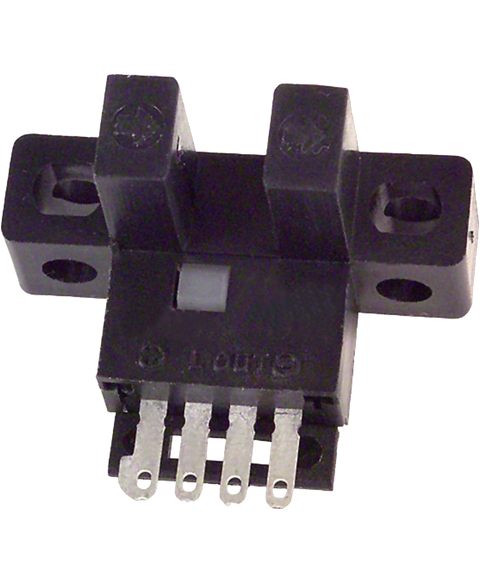

Omron EE-SX671-WR
Omron EE-SX671-WR slot photoelectric sensor, 5mm, NPN, 1m cable.
This Omron EE-SX671-WR is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors > Slot type range and is referenced internally as PartLogic SKU PL26952148478.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Height | 18.7 mm |
| Housing Material | Polybutylene |
| Length | 26.2 mm |
| Max Collector Current | 100 mA |
| Max Operating Temperature | 55 °C |
| Max Supply Voltage (DC) | 24 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 5 V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Pins | 4 |
| Output Type | Phototransistor |
| Ratings | IP50 |
| RoHS | Compliant |
| Sensing Distance | 5 mm |
| Termination | Cable |
| Wavelength | 940 nm |
| Width | 15.5 mm |
