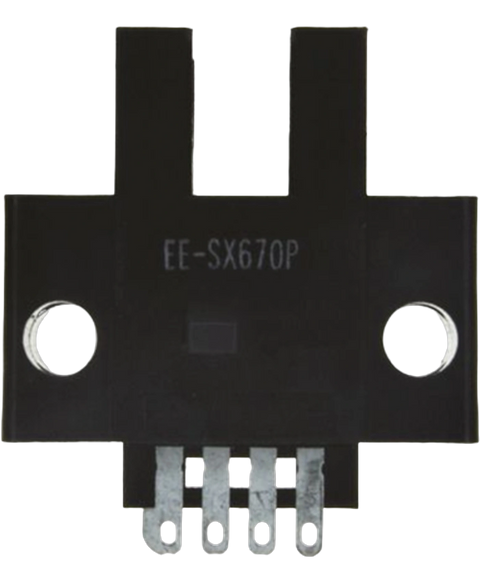

Omron EE-SX670P
Photoelectric slot sensor, 5mm, PNP.
This Omron EE-SX670P is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors > Slot type range and is referenced internally as PartLogic SKU PL26805666523.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Height | 24.2 mm |
| Housing Material | Polybutylene |
| Lead Free | Lead Free |
| Length | 25.4 mm |
| Max Collector Current | 50 mA |
| Max Operating Temperature | 55 °C |
| Max Supply Voltage | 24 V |
| Max Supply Voltage (DC) | 24 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage | 5 V |
| Min Supply Voltage (DC) | 5 V |
| Mount | Chassis Mount, Panel |
| Number of Channels | 1 |
| Number of Pins | 4 |
| Operating Supply Current | 30 mA |
| Output Configuration | Dark-On |
| Output Current | 50 mA |
| Output Type | Phototransistor |
| Ratings | IP50 |
| RoHS | Compliant |
| Sensing Distance | 5.0038 mm |
| Termination | Connector |
| Wavelength | 940 nm |
| Width | 6.95 mm |
