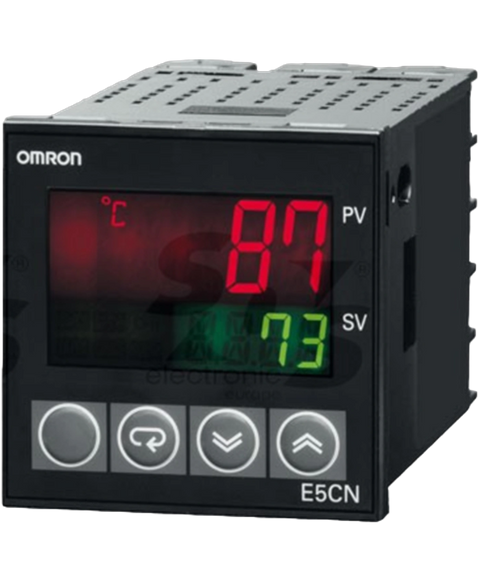

Omron E5CN-Q2MT-500
Omron E5CN temperature controller, 1,16 DIN, 100-240VAC, thermocouple,RTD input.
This Omron E5CN-Q2MT-500 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controllers > Temperature controllers range and is referenced internally as PartLogic SKU PL26801430624.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | 100 |
| Control Method | On/Off, Proportional (PID) |
| Display Type | Dual |
| Height | 48 mm |
| Lead Free | Lead Free |
| Length | 104 mm |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -10 °C |
| Min Output Voltage | 10.2 V |
| Mount | Panel |
| Number of Inputs | 2 |
| Number of Outputs | 2 |
| Operating Supply Voltage | 240 V |
| Output Current | 21 mA |
| Output Type | Voltage |
| Ratings | IP66 |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Termination | Screw |
| Thickness | 48 mm |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 240 V |
| Weight | 150.139074 g |
| Width | 48 mm |
