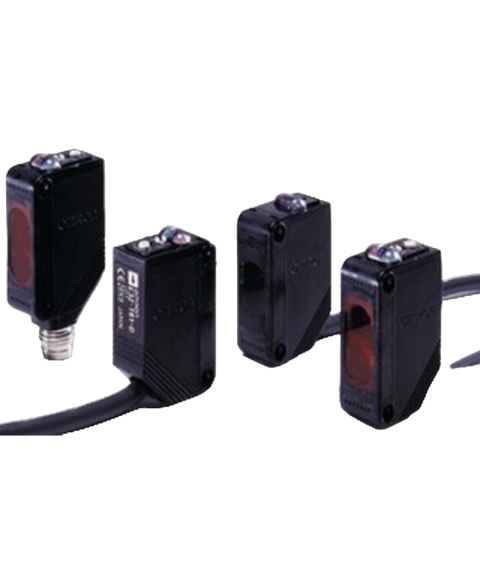

Omron E3Z-R61
Photoelectric sensor, retro-reflective, 4m, NPN.
This Omron E3Z-R61 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors > Compact photoelectric sensors range and is referenced internally as PartLogic SKU PL26801354294.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, cULus |
| Body Material | PBT |
| Connector Type | Cable |
| Height | 33.2 mm |
| Lead Free | Contains Lead |
| Length | 20 mm |
| Max Operating Temperature | 55 °C |
| Max Supply Voltage | 26.4 V |
| Max Supply Voltage (DC) | 24 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage | 10.8 V |
| Min Supply Voltage (DC) | 12 V |
| Mount | Brackets, Screw |
| Number of Pins | 4 |
| Operating Supply Voltage | 24 V |
| Output Configuration | Dark-On |
| Output Current | 100 mA |
| Ratings | IP67 |
| REACH SVHC | Unknown |
| Response Time | 1 ms |
| Rise Time | 1 ms |
| RoHS | Compliant |
| Sensing Distance | 3.999992 m |
| Termination | Cable |
| Touchscreen | Infrared (IR) |
| Weight | 65.203903 g |
| Width | 10.8 mm |
