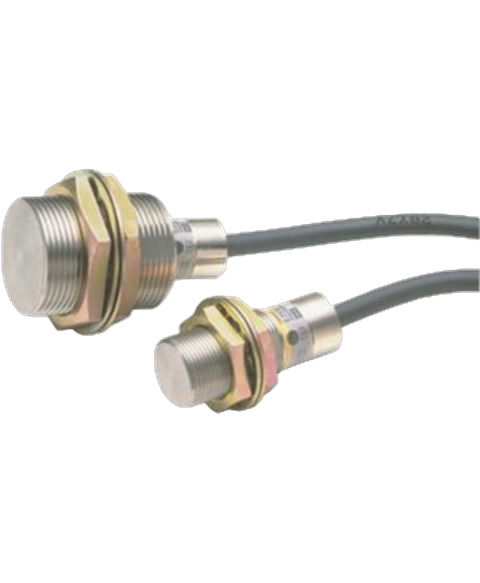

Omron E2EX1R5E1
PROXIMITY SENSOR,E2E,CONNECTOR MODEL,1.5 MM SENSING DISTANCE,SHIELDED,DC 3-WIRE,NPN COLLECTOR LOAD BUILT-IN,NORMALLY OPEN,STANDARD FREQUENCY,NO SELF-DIAGNOSIS,M12 CONNECTOR
This Omron E2EX1R5E1 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26993512783.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Body Material | Stainless Steel |
| Lead Free | Contains Lead |
| Length | 37 mm |
| Load Current | 200 mA |
| Max Operating Temperature | 85 °C |
| Max Supply Voltage | 40 V |
| Max Supply Voltage (DC) | 24 V |
| Min Operating Temperature | -40 °C |
| Min Supply Voltage | 10 V |
| Min Supply Voltage (DC) | 12 V |
| Mount | Brackets, DIN Rail, Panel |
| Number of Pins | 4 |
| Operating Supply Current | 13 mA |
| Ratings | IP67 |
| REACH SVHC | No |
| Response Frequency | 2 kHz |
| Response Time | 100 µs |
| RMS Current (Irms) | 100 mA |
| RoHS | Compliant |
| Sensing Distance | 1.5 mm |
| Sensing Method | Inductive |
| Shielding | Shielded |
| Switching Frequency | 2 kHz |
| Termination | Cable Leads |
| Thread Size | M8 |
| Width | 15 mm |
