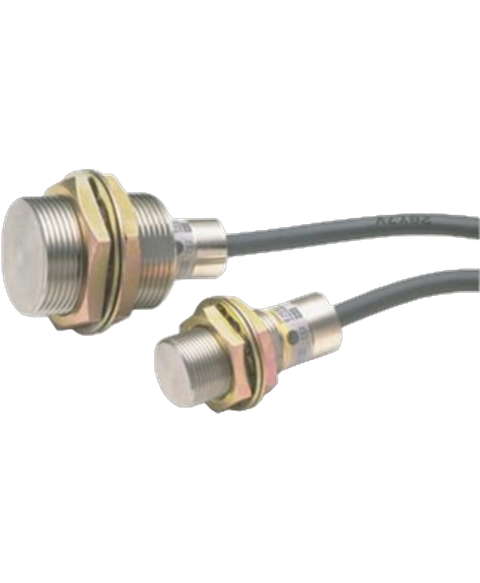

Omron E2E-X1R5Y1
Inductive proximity sensor, M8, 1.5mm, AC.
This Omron E2E-X1R5Y1 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26801464371.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CSA, UL |
| Body Material | Stainless Steel |
| Height | 15 mm |
| Housing Material | Brass |
| Lead Free | Contains Lead |
| Length | 47 mm |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage | 30 V |
| Max Supply Voltage (AC) | 240 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage | 10 V |
| Min Supply Voltage (AC) | 24 V |
| Mount | Panel |
| Nominal Supply Current | 13 mA |
| Number of Pins | 4 |
| Ratings | IP67 |
| REACH SVHC | Unknown |
| Response Frequency | 25 Hz |
| RoHS | Compliant |
| Sensing Distance | 1.5 mm |
| Sensing Method | Inductive |
| Shielding | Shielded |
| Switching Frequency | 25 Hz |
| Termination | Cable Leads |
| Width | 15 mm |
