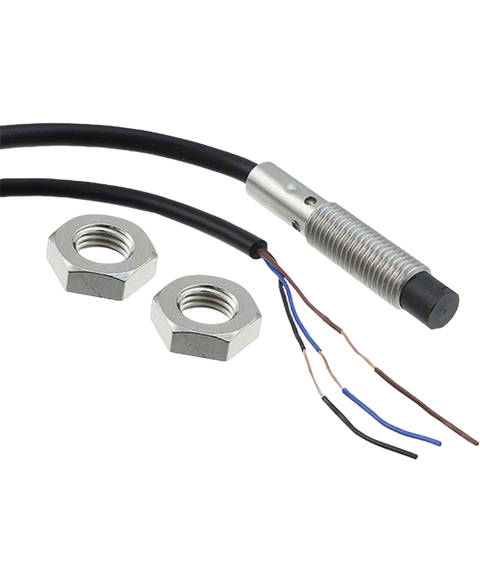

Omron E2B-S08KN04-WP-C2
Omron E2B-S08KN04-WP-C2 proximity sensor, 4mm, NPN.
This Omron E2B-S08KN04-WP-C2 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL27189227825.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Body Material | Stainless Steel |
| Housing Material | Stainless Steel |
| Length | 27 mm |
| Max Frequency | 1 kHz |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Mount | Panel |
| Operating Supply Current | 200 mA |
| Operating Supply Voltage | 30 V |
| Ratings | IP67 |
| Response Frequency | 1 kHz |
| RoHS | Compliant |
| Sensing Distance | 3.9878 mm |
| Sensing Method | Inductive |
| Shielding | Unshielded |
| Switching Current | 200 mA |
| Switching Frequency | 1 kHz |
| Termination | Cable Leads |
| Thread Size | M8 |
