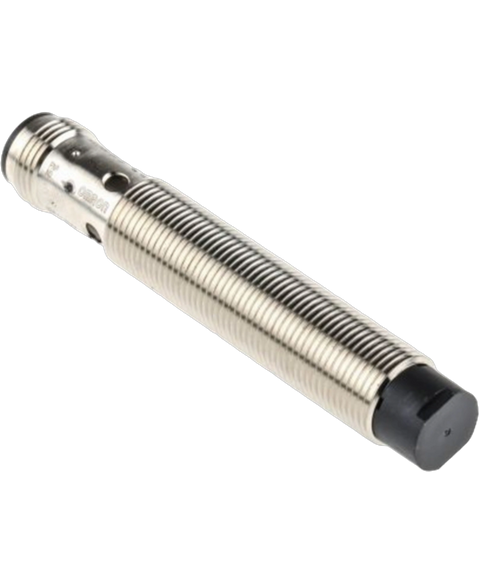

Omron E2B-M12LN08-M1-B1
Omron E2B-M12LN08-M1-B1 inductive proximity sensor, M12, 8mm, PNP NO.
This Omron E2B-M12LN08-M1-B1 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26805669899.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Body Material | Brass |
| Housing Material | Brass |
| Max Frequency | 800 Hz |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Mount | Panel |
| Number of Pins | 4 |
| Operating Supply Current | 200 mA |
| Operating Supply Voltage | 30 V |
| Ratings | IP67 |
| Response Frequency | 800 Hz |
| RoHS | Compliant |
| Sensing Distance | 8.001 mm |
| Sensing Method | Inductive |
| Shielding | Unshielded |
| Switching Current | 200 mA |
| Switching Frequency | 800 Hz |
| Termination | Connector |
| Thread Size | M12 |
