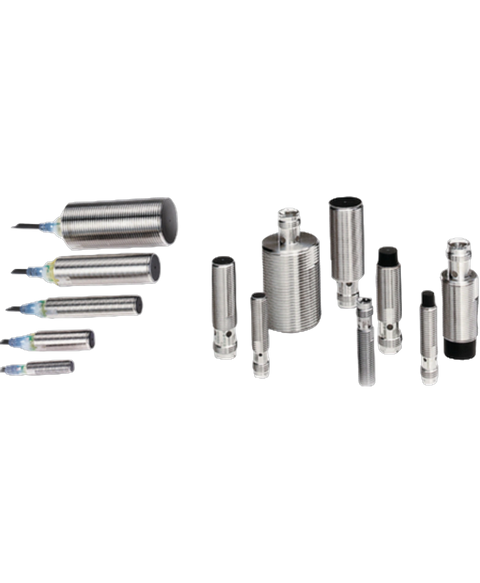

Omron E2A-M12LS04-M1-B1
Inductive proximity sensor, M12, 4mm, PNP NO, 10-32VDC, IP67.
This Omron E2A-M12LS04-M1-B1 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26801464431.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Body Material | Brass |
| Height | 17 mm |
| Housing Material | Brass |
| Length | 70 mm |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage | 32 V |
| Max Supply Voltage (DC) | 24 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage | 10 V |
| Min Supply Voltage (DC) | 12 V |
| Mount | Panel |
| Number of Pins | 4 |
| Operating Supply Current | 10 mA |
| Operating Supply Voltage | 24 V |
| Radiation Hardening | No |
| Ratings | IP67 |
| REACH SVHC | Unknown |
| Response Frequency | 1 kHz |
| RoHS | Compliant |
| Sensing Distance | 4 mm |
| Sensing Method | Inductive |
| Shielding | Shielded |
| Termination | Connector |
| Throw Configuration | SPST |
| Width | 19.62 mm |
