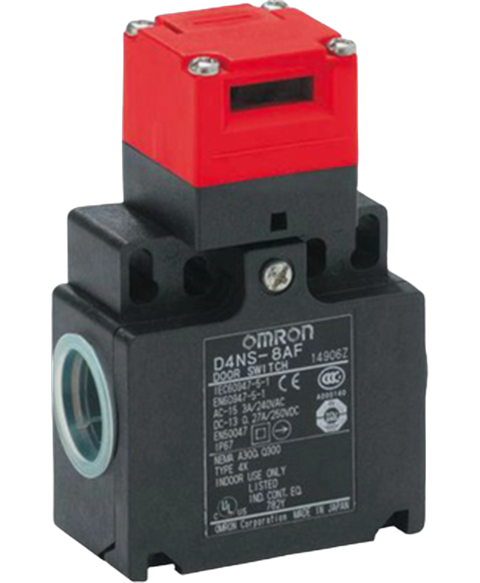

Omron D4NS8DF
Safety door switch - OMRON (D4NS) - Rated current (240Vac; AC-15) 3A , (250Vdc; DC-13) 0.27A - Connection type (2-conduit) M20 - (slow-action) 3NC - IP67
This Omron D4NS8DF is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety switches > Guard locking range and is referenced internally as PartLogic SKU PL27193520773.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Current Rating | 3 A |
| Depth | 30 mm |
| Electrical Life | 500 kcycles |
| Housing Material | Plastic |
| Length | 96 mm |
| Max Operating Temperature | 70 °C |
| Mechanical Life | 1 Mcycles |
| Min Operating Temperature | -30 °C |
| Mount | Chassis Mount |
| Pretravel | 6.2992 mm |
| Ratings | Dust Tight, IP67, Waterproof |
| RoHS | Compliant |
| Switch Function | On-Off |
| Termination | Screw |
| Throw Configuration | 3PST |
| Voltage Rating (AC) | 240 V |
| Width | 31 mm |
