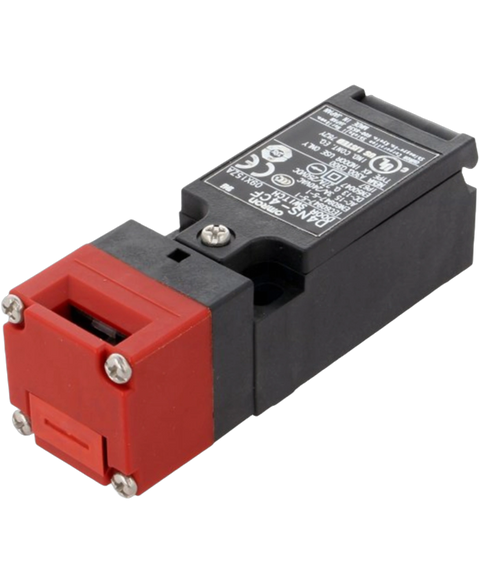

Omron D4NS-4CF
Omron D4NS4CF safety interlock switch, 2NC+1NO.
This Omron D4NS-4CF is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety switches > Guard locking range and is referenced internally as PartLogic SKU PL26801457592.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Current Rating | 3 A |
| Depth | 30 mm |
| Electrical Life | 500 kcycles |
| Housing Material | Plastic |
| Length | 96 mm |
| Max Operating Temperature | 70 °C |
| Mechanical Life | 1 Mcycles |
| Min Operating Temperature | -30 °C |
| Mount | Chassis Mount |
| Pretravel | 6.2992 mm |
| Ratings | Dust Tight, IP00, IP67, Waterproof |
| RoHS | Compliant |
| Termination | Screw |
| Throw Configuration | 3PST |
| Voltage Rating (AC) | 240 V |
| Width | 31 mm |
