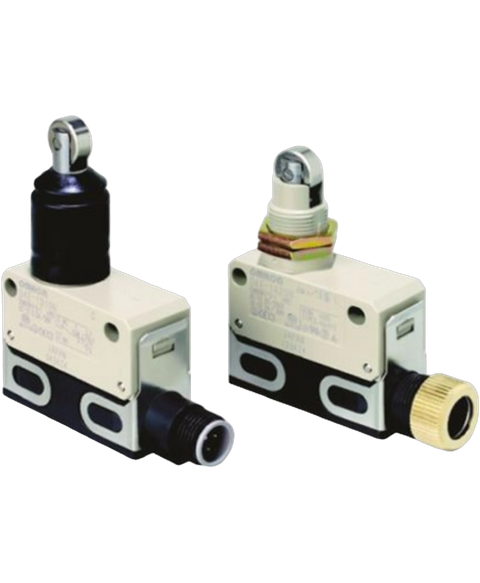

Omron D4E-1D10N
Omron D4E-1D10N limit switch, roller plunger, SPDT, connector.
This Omron D4E-1D10N is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety switches > Limit switches range and is referenced internally as PartLogic SKU PL26801464635.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Contact Resistance | 15 mΩ |
| Current Rating | 1 A |
| Differential Travel | 101.6 µm |
| Max Operating Temperature | 80 °C |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 250 V |
| Mechanical Life | 10 Mcycles |
| Min Operating Temperature | -10 °C |
| Mount | Chassis Mount, Screw |
| Operating Force | 11.77 N |
| Operating Position | 41.275 mm |
| Orientation | Straight |
| Overtravel | 2.9972 mm |
| Pretravel | 1.524 mm |
| Ratings | Dust Tight, IP67, Waterproof |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Switch Function | On-Mom |
| Termination | Connector |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125 V |
| Voltage Rating (DC) | 30 V |
