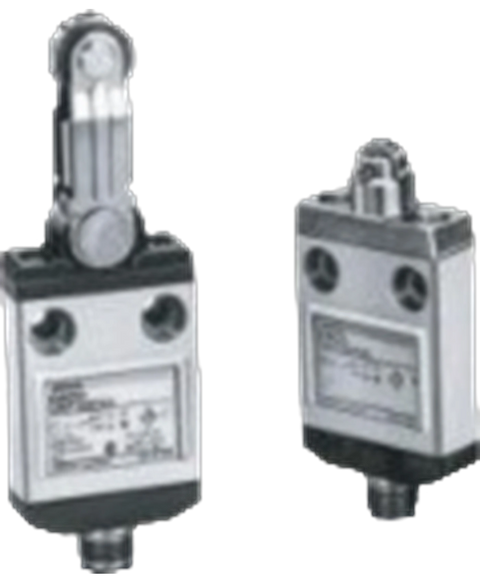

Omron D4CC-4024
Omron D4CC4024 limit switch, roller lever, SPDT, 1A, 30VDC.
This Omron D4CC-4024 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety switches > Limit switches range and is referenced internally as PartLogic SKU PL26805650610.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CSA, UL |
| Contact Resistance | 100 mΩ |
| Current Rating | 1 A |
| Depth | 50 mm |
| Electrical Life | 200 kcycles |
| Height | 121.2 mm |
| Length | 40 mm |
| Max Operating Temperature | 70 °C |
| Max Voltage Rating (DC) | 30 V |
| Mechanical Life | 10 Mcycles |
| Min Operating Temperature | -10 °C |
| Mount | Chassis Mount, Panel, Screw |
| Operating Force | 5.69 N |
| Orientation | Right Angle |
| Ratings | Dust Tight, IP67, Waterproof |
| RoHS | Compliant |
| Switch Function | On-Mom |
| Termination | Connector |
| Throw Configuration | SPDT |
| Voltage Rating (DC) | 30 V |
