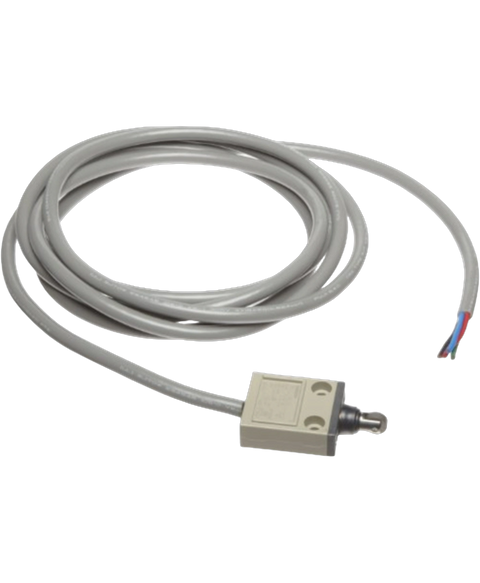

Omron D4C-1633
Omron D4C-1633 limit switch, cross roller plunger, SPDT, 5A.
This Omron D4C-1633 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety switches > Limit switches range and is referenced internally as PartLogic SKU PL26801443058.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Current Rating | 5 A |
| Depth | 16 mm |
| Differential Travel | 203.2 µm |
| Electrical Life | 200 kcycles |
| Length | 49 mm |
| Max Operating Temperature | 70 °C |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 30 V |
| Mechanical Life | 10 Mcycles |
| Min Operating Temperature | -10 °C |
| Mount | Chassis Mount, Panel, Screw |
| Number of Poles | 1 |
| Operating Force | 17.65 N |
| Operating Position | 34.29 mm |
| Orientation | Straight |
| Overtravel | 2.9972 mm |
| Pretravel | 1.8034 mm |
| Ratings | Dust Tight, IP67, Waterproof |
| RoHS | Compliant |
| Switch Function | On-Mom |
| Termination | Cable |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250 V |
| Voltage Rating (DC) | 30 V |
| Width | 40 mm |
