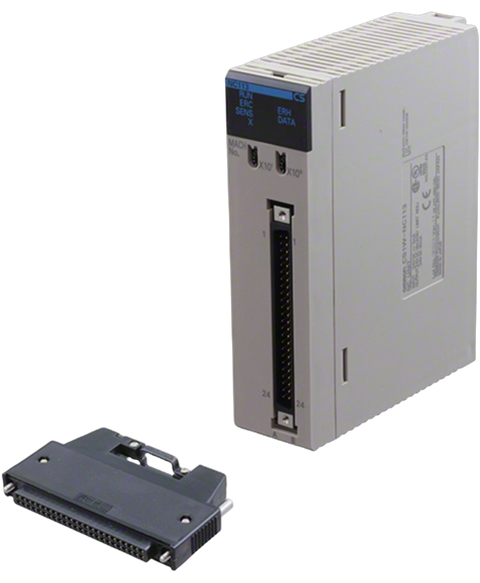

Omron CS1W-NC113
The CS1W-NC113 module from Omron is a precision position control unit designed for high-speed applications. Operating at 5 VDC for the control unit and line driver unit, it also requires an external power supply of 24 VDC for additional functionality.
This Omron CS1W-NC113 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Position control range and is referenced internally as PartLogic SKU PL26805526226.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Omron |
| Product Line | CS1 |
| Part Number | CS1W-NC113 |
| Weight | 1.00 lbs (0.45 kg) |
| Description of Module | Position Control Unit (High Speed, High Precision) |
| Power Supply Voltage | 5 VDC (PCU Unit and Line Driver Unit) |
| External Power Supply Voltage | 24 VDC |
| Internal Current Consumption | 250mA at 5 VDC |
| Number of Control Axes | 1 |
| Control Unit | Pulse |
| Speed (in pps) | 1 pps to 500 Kpps |
| Speed (Data Items per Axis) | 100/axis |
| Mounting | Backplane |
| Termination Style | DSUB |
| Brand | Omron |
