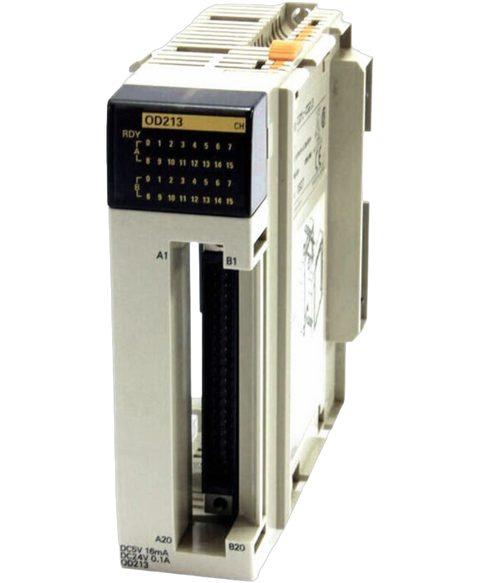

Omron CQM1-OD213
The Omron CQM1-OD213 module is a CQM1 series transistor output unit with solid-state outputs. It has 32 output channels, and all 32 points are connected to the same common. Its switching capacity ranges from 16 mA at 4.5 VDC to 100 mA at 26.4 VDC. The CQM1-OD213 output module’s low leakage current rating is 0.1 mA maximum, and its residual voltage rating is 0.8 V maximum. The internal current consumption rating of the CQM1-OD213 output module is 240 mA maximum at 5 VDC.
This Omron CQM1-OD213 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Transistor output range and is referenced internally as PartLogic SKU PL26801430788.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Omron |
| Product Line | CQM1 |
| Part Number | CQM1-OD213 |
| Weight | 0.63 lbs (0.28 kg) |
| Module Type | Transistor Output Unit |
| Series | CQM1 Series |
| No. of Outputs | 32 Points (32 Points/Common) |
| No. of Circuits | 1 Circuit |
| Voltage Type | DC |
| Voltage Range | 4.5 to 26.4V DC |
| Max. Switching Capacity | 16 mA at 4.5 VDC to 100 mA at 26.4 V |
| Leakage Current | 0.1 mA max. |
| Residual Voltage | 0.8 V max. |
| ON Delay | 0.1 ms max. |
| OFF Delay | 0.4 ms max. |
| Internal Current Consumption | 240 mA max. at 5 VDC |
| Fuse | 3.5 A (One per Common), One Only. |
| Brand | Omron |
