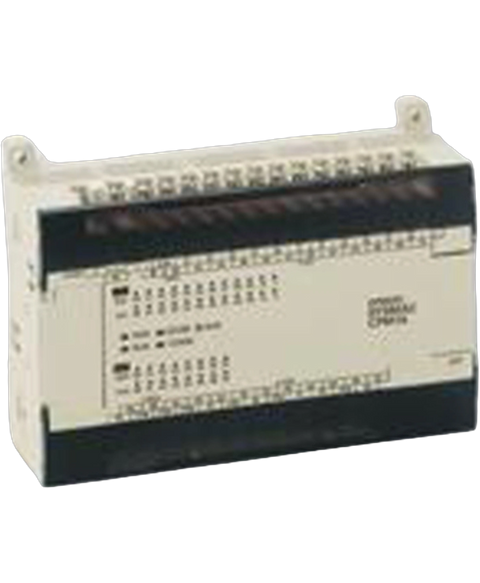

Omron CPM1A-30CDR-A-V1
The Omron CPM1A-30CDR-A-V1 model is a compact controller with a versatile array of functions. This unit integrates dedicated I,O modules for analog inputs, temperature sensors, and serial communication, alongside a PROFIBUS-DP I,O link for enhanced connectivity.
This Omron CPM1A-30CDR-A-V1 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Programmable logic controllers range and is referenced internally as PartLogic SKU PL26801735015.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Omron |
| Product Line | CPM1 |
| Part Number | CPM1A-30CDR-A-V1 |
| Weight | 0.94 lbs (0.43 kg) |
| Dedicated I/O Modules | Analog I/O, temperature sensor inputs, serial communications |
| EEPROM Memory | 256 kbits |
| PROFIBUS-DP I/O Link Unit | Slave functionality |
| Maximum I/O Points | 10 (6 input/4 output) |
| Program Capacity | 2,048 words |
| Instruction Execution Time | Basic (0.72 to 16.2 μs), Special (16.3 μs) |
| Programming Language | Ladder diagram |
| Control Method | Stored program method |
| Approvals | UL, CSA, CE |
| Relay or Transistor Outputs | Options available |
| Auxiliary 24 VDC Supply | Available for AC models |
| Temperature Sensor Input Modules | Supports thermocouple (J, K) and platinum resistance thermometer (Pt100, JPt100) |
| Analog Expansion Modules | Available |
| Peripheral Communications Port | Built-in |
| Expandable I/O | Up to 100 points |
| Brand | Omron |
