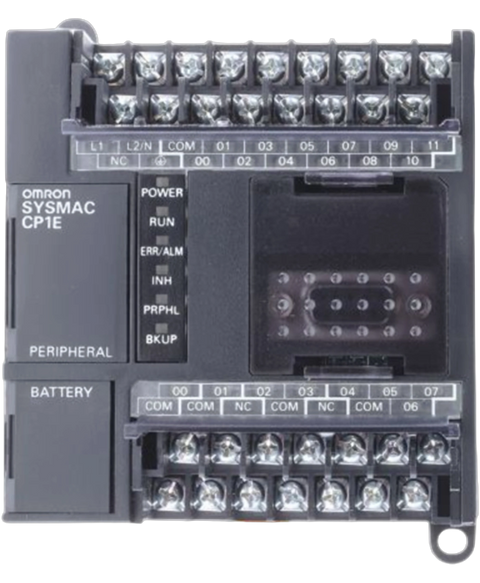

Omron CP1E-N20DR-A
The Omron CP1E-N20DR-A model provides versatile control capabilities in a compact format. This unit supports a wide input voltage range of 100 to 240 VAC and has various digital inputs and relay outputs.
This Omron CP1E-N20DR-A is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Programmable logic controllers range and is referenced internally as PartLogic SKU PL26801435664.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Omron |
| Product Line | CP1 |
| Part Number | CP1E-N20DR-A |
| Weight | 0.25 lbs (0.11 kg) |
| Power Supply | 100 to 240 VAC |
| Inputs | 12 digital inputs |
| Outputs | 8 relay outputs |
| Program Capacity | 2K steps |
| Data Memory Capacity | 2K words |
| Pulse Outputs | 2-100 kHz pulse outputs |
| High-Speed Counters | 4-10 kHz, single-phase high-speed counters |
| Communication Ports | Built-in RS-232C port |
| External Power Supply | 24 VDC, 300 mA |
| Storage Temperature | -20 to 75°C |
| Insulation Resistance | 20 MΩ min (at 500 VDC) |
| Brand | Omron |
