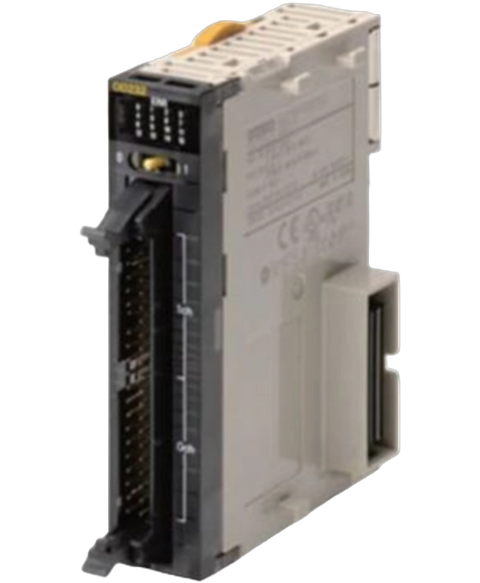

Omron CJ1W-OD232
The Omron CJ1W-OD232 module is a transistor output unit from the CJ1 Basic I,O Unit series. It has 32 outputs organized in groups of 16 points,common, and its outputs are PNP sourcing digital outputs. It operates at a rated voltage of 24 VDC and an operating load voltage range of 20.4 to 26.4 VDC. The CJ1W-OD232 module’s maximum load current is 0.5 A,point, 2.0 A,common, and 4.0 A,unit.
This Omron CJ1W-OD232 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Transistor output range and is referenced internally as PartLogic SKU PL26801446012.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Omron |
| Product Line | CJ1 |
| Part Number | CJ1W-OD232 |
| Weight | 0.50 lbs (0.23 kg) |
| Model Type | Transistor output unit |
| Series | CJ1 Basic I/O Units series |
| Number of Outputs | 32 outputs (16 points/common) |
| Digital Output Type | PNP sourcing transistor outputs |
| Rated Voltage | 24 VDC |
| Operating Load Voltage Range | 20.4 to 26.4 VDC |
| Maximum Load Current | 0.5 A/point, 2.0 A/common, 4.0 A/Unit |
| Leakage Current | 0.1 mA max |
| Residual Voltage | 1.5 V max |
| Load Short-Circuit Protection, Detection Current | 0.7 to 2.5 A |
| Internal Current Consumption | 5 VDC 150 mA max. |
| External Power Supply | 20.4 to 26.4 VDC, 70 mA min. |
| Number of Allocated Words | 2 words |
| Standards | UC1, N, L, CE |
| Brand | Omron |
