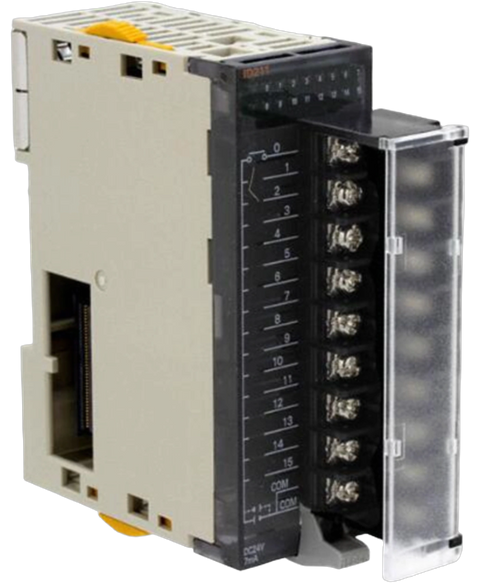

Omron CJ1W-ID211
The Omron CJ1W-ID211 CJ series input module is a 16-point DC input unit that features a terminal block for easy connectivity. It offers 16 digital inputs with PNP,NPN compatibility. The I,O connection type is a screw-based connection option that provides secure and reliable connections. The CJ1W-ID211 module operates at a rated input voltage of 24 VDC and with an input voltage range of 20.4 to 26.4 VDC. The input impedance rating is 3.3 kilohms, and the typical input current at 24 VDC is 7 mA. The unit has an ON,OFF response time of 8.0 ms max.
This Omron CJ1W-ID211 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input range and is referenced internally as PartLogic SKU PL26801450205.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Omron |
| Product Line | CJ1 |
| Part Number | CJ1W-ID211 |
| Weight | 0.25 lbs (0.11 kg) |
| Model Type | DC Input Unit |
| Number of Digital Inputs | 16 Inputs |
| Digital Input Type | PNP/NPN |
| I/O Connection Type | Screw |
| Number of COM Terminals | 2 Terminals |
| Rated Input Voltage | 24 VDC |
| Rated Input Voltage Range | 20.4 to 26.4 VDC |
| Input Impedance | 3.3 kilohms |
| Input Current | 7 mA typical (at 24 VDC) |
| ON Voltage/ON Current | 14.4 VDC min./3 mA min. |
| OFF Voltage/OFF Current | 5 VDC max./1 mA max. |
| ON/OFF Response Time | 8 ms max |
| Number of Circuits | 16 (16 points/common, 1 circuit) |
| Internal Current Consumption | 80 mA max |
| Brand | Omron |
