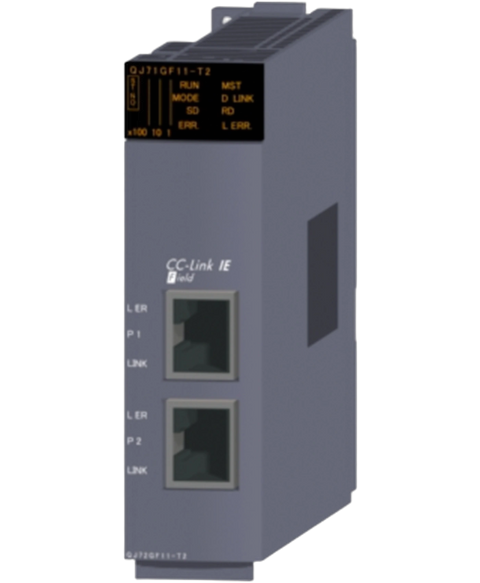

Mitsubishi QJ71GF11-T2
The QJ71GF11-T2 is a versatile module from Mitsubishi's Melsec-Q series. It serves as both a master and local module within CC-Link IE Field networks. It enables a high communication speed of up to 1 Gbps and supports numerous network points, accommodating extensive automation solutions.
This Mitsubishi QJ71GF11-T2 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules range and is referenced internally as PartLogic SKU PL26805594846.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | Melsec-Q |
| Part Number | QJ71GF11-T2 |
| Weight | 0.19 lbs (0.09 kg) |
| Description of Module | Master/Local Module |
| Module Description | CC-Link IE Field Network Master/Local Module |
| Maximum Link Points per Network | 16384 points (RX), 16384 points (RY), 8192 points (RWr), 8192 points (RWw) |
| Maximum Number of Link Points per Station | 16384 points (RX), 16384 points (RY), 8192 points (RWr), and 8192 points (RWw) for Master station; 2048 points (RX), 2048 points (RY), 1024 points (RWr), and 1024 points (RWw) for Local station |
| Communication Speed | 1 Gbps |
| Connection Cable | Ethernet cable that meets the 1000BASE-T standard; Category 5e or higher (double shielded, STP), straight cable |
| Maximum Station-to-Station Distance | 100 m max |
| Network Topology | Line topology, star topology (coexistence of line topology and star topology is possible), and ring topology |
| Number of Connected Stations in One Network | Master station - 1 station (up to 120 slave stations can be connected with or without a sub-master); Local station - 120 stations |
| Station Type | Master station, Local station |
| Communication Method | Token passing method |
| Number of Occupied I/O Points | 32 points (I/O assignment: Intelligent 32 points) |
| Internal Current Consumption (5VDC) | 0.85A |
| External Dimensions | 98(H) × 27.4(W) × 115(D) [mm] |
| Mass | 0.18 kg |
| Brand | Mitsubishi |
