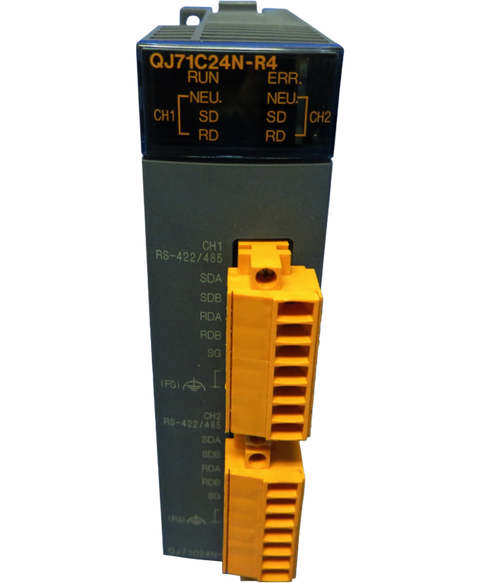

Mitsubishi QJ71C24N-R4
The Mitsubishi QJ71C24N-R4 is a Serial Communication Module with RS-422,485 compliance. This module has two channels and both of them can connect to an RS-422,485 interface having a 2-piece plug-in connector at the socket block. The transmission through the module covers a distance of 1200 meters (3937 feet) at max. The communication module follows a half-duplex or full-duplex format and a start-stop synchronization method. There are 32 occupied I,O points per slot. The external dimensions include 98 mm height, 27.4 mm width, and 90 mm depth with the weight being 0.2 kg.
This Mitsubishi QJ71C24N-R4 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules range and is referenced internally as PartLogic SKU PL26801408265.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | Melsec-Q |
| Part Number | QJ71C24N-R4 |
| Weight | 0.31 lbs (0.14 kg) |
| Series | MELSEC-Q SERIES |
| Width (mm) | 27.4 |
| Height (mm) | 98 |
| Depth (mm) | 90 |
| Interface | RS-422/485 |
| Communications system | Full-duplex/half-duplex communications |
| Synchronization method | Start-stop synchronization method |
| Transmission distance (RS-422/485 ) | Maximum 1200 m (3937 ft.) (overall distance) |
| Flash ROM write count | Maximum 100,000 times to the same area |
| 5V DC internal current consumption | 0.39 A |
| External dimensions | 98 x 27.4 x 90 mm (H x W x D) |
| Brand | Mitsubishi |
