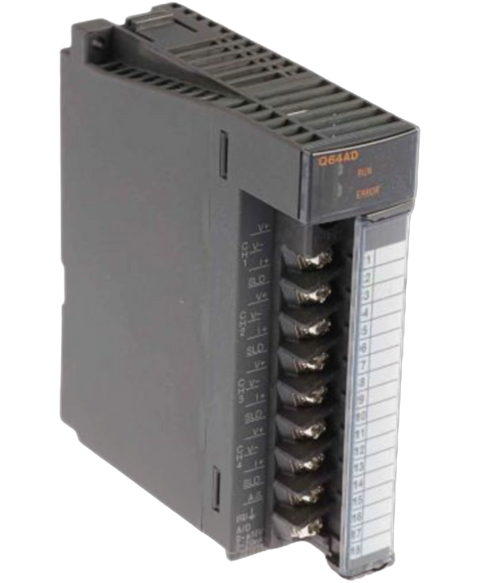

Mitsubishi Q64AD
The Mitsubishi Q64AD is a specialized 4-channel analog input module designed for Melsec-Q systems. It accommodates a range of input conditions, including voltages from –10 to 10 V DC and currents between 0 to 20 mA DC, making it highly versatile.
This Mitsubishi Q64AD is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input range and is referenced internally as PartLogic SKU PL26801471128.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | Melsec-Q |
| Part Number | Q64AD |
| Weight | 0.44 lbs (0.20 kg) |
| Module Type | 4-Channel Analog Input Module |
| Analog Input Channels | 4 channels |
| Input Voltage Range | –10 to 10 V DC (Input resistance: 1MΩ) |
| Input Current Range | 0 to 20 mA DC (Input resistance: 250Ω) |
| Digital Output Format | 16-bit signed binary (Normal & High Res) |
| Digital Output Range (Normal) | –4096 to 4095 |
| Digital Output Range (High Res) | –12288 to 12287 / –16384 to 16383 |
| Conversion Speed | 80 microseconds per channel |
| Max Input (Voltage) | ±15 V |
| Max Input (Current) | ±30 mA |
| E2PROM Write Limit | Max 100,000 cycles |
| I/O Occupied Points | 16 points |
| Internal Power Consumption (5 VDC) | 0.63 A |
| Operating Temperature | 0 to 55°C |
| Brand | Mitsubishi |
