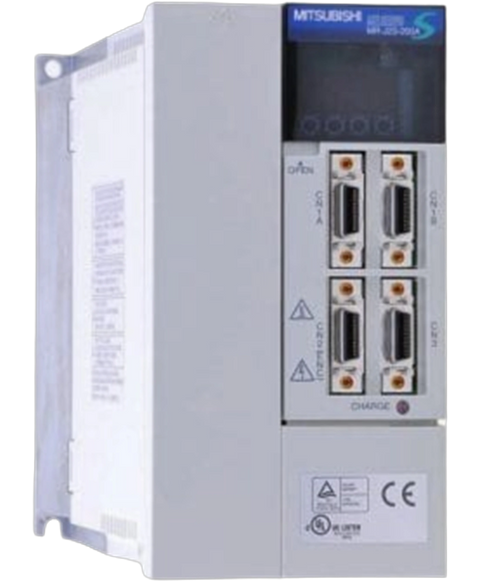

Mitsubishi MR-J2S-60A
The MR-J2S-60A is a servo drive designed for motion control by Mitsubishi Electric. Operating via a power supply rated at 200 to 230 volts AC three-phase or 230 volts AC single-phase, this device ensures smooth and accurate movement. Its Sinusoidal PWM control system and built-in dynamic brake allow precise speed control and quick stopping. With a high-speed frequency response of 550 Hz, it handles rapid changes. The encoder-based positioning feedback delivers precise positioning, and torque control accepts commands up to ±8VDC.
This Mitsubishi MR-J2S-60A is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives range and is referenced internally as PartLogic SKU PL26805655788.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | Servo Drive/ Amplifier |
| Product Line | MELSERVO MR-J2 |
| Part Number | MR-J2S-60A |
| Weight | 2.56 lbs (1.16 kg) |
| Brand Name | Mitsubishi Electric |
| Series | MR-J2S |
| Power Supply (Voltage/Frequency) | 3-phase 200-230VAC, 50/60Hz; 1-phase 230VAC, 50/60Hz |
| Permissible Voltage Fluctuation (3-phase) | 170-253VAC |
| Control System | Sinusoidal PWM control/current control system |
| Dynamic Brake | Built-in |
| Speed Frequency Response | 550 Hz or more |
| Maximum Input Pulse Frequency (Position Control Mode) | 500 kpps (differential receiver), 200 kpps (open collector) |
| Positioning Feedback Pulse | 131072 pulses/revolution (encoder resolution) |
| Positioning Complete Width Setting | 0 - ±10VDC |
| Torque Command Input (Torque Control Specifications) | 0-±8VDC |
| Torque Limit (Speed Control Mode) | Set by parameters or external analog input (0-±10VDC) |
| Structure | Self-cooling, open (IP00) |
| Brand | Mitsubishi |
