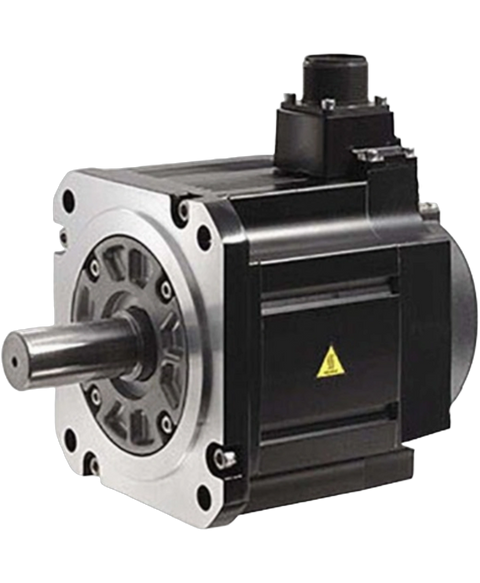

Mitsubishi HG-SR152
The Mitsubishi HG-SR152 is an AC brushless servo motor optimized for precise applications. It operates at a rated speed of 2000 RPM and can achieve a maximum speed of 3000 RPM, providing efficient performance for various industrial requirements.
This Mitsubishi HG-SR152 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805442889.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | HG Series |
| Part Number | HG-SR152 |
| Weight | 10.06 lbs (4.56 kg) |
| Rated Speed | 2000 RPM |
| Rated Torque | 7.2 Nm |
| Voltage Class | 200VAC Class |
| Maximum Torque | 21.5 Nm |
| Maximum Speed | 3000 RPM |
| Encoder | 22-Bit Encoder |
| Shaft | Straight Shaft |
| Protection Class | IP67 |
| Rated Current | 9.4 A |
| Maximum Current | 29 A |
| Operating Temperature | 32 to 104 °F |
| Storage Temperature | 5 to +158 °F |
| Inertia Type | Medium Inertia |
| Output Power | 1.5 kW |
| Product | AC Brushless Servo Motor |
| Brand | Mitsubishi |
