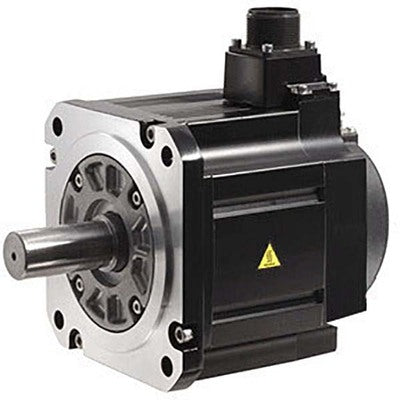

Mitsubishi HG-SN102J-S100
The HG-SN102J-S100 is a rotary servo motor developed by Mitsubishi for diverse applications. It offers an output power of 1 kW and operates effectively at a rated current of 5.6A, with a maximum current of 17A.
This Mitsubishi HG-SN102J-S100 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805658100.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | HG Series |
| Part Number | HG-SN102J-S100 |
| Output Power | 1 kW |
| Rated Current | 5.6A |
| Maximum Current | 17A |
| Operating Temperature | 0 to 40 degrees Celsius |
| Storage Temperature | -15 to 70 degrees Celsius |
| Oil Seal | Included |
| Rated Torque | 4.77 Nm |
| Maximum Torque | 14.3 Nm |
| Rated Speed | 2000 rpm |
| Maximum Speed | 3000 rpm |
| Structure | TENC (Totally Enclosed Natural Cooling) Structure |
| Shaft | Straight Shaft |
| Capacity | Medium Capacity |
| Inertia Type | Low Inertia |
| Brand | Mitsubishi |
