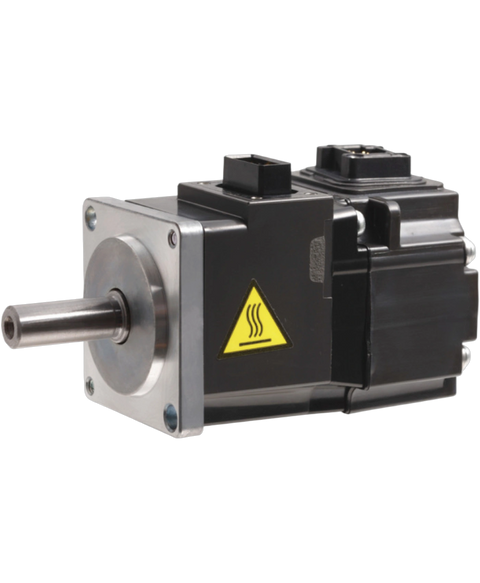

Mitsubishi HG-MR23
The series as a whole integrates advanced sensing technology that enables these encoders to capture even the most intricate of movements with utmost precision. Whether it's robotics, manufacturing machinery, or automated assembly lines, the HG-MR23 series plays a vital role in ensuring smooth and reliable operations.As a distinguished component of Mitsubishi's HG , MELSERVO-J4 series, the HG-MR23 exemplifies a high-caliber servo motor characterized by a 0,2 kW rated capacity. Operating at a rated speed of 3000 RPM and surging to a maximum speed of 6000 RPM, this straight-shaft motor integrates both absolute and incremental encoder types. Ensconced within dimensions of 60 x 77.1 x 76.6 mm and weighing a mere 910 grams, the unit is both compact and efficient, further accentuated by its IP65 protection class.
This Mitsubishi HG-MR23 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805637408.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | HG Series |
| Part Number | HG-MR23 |
| Weight | 3.00 lbs (1.36 kg) |
| Type | Servo motor |
| Series | HG / MELSERVO-J4 |
| Rated Capacity | 0,2 kW |
| Rated Torque | 0,64 Nm |
| Maximum Torque | 1,9 Nm |
| Rated Speed | 3000 RPM |
| Maximum Speed | 6000 RPM |
| Inertia | 0,0865 kg*cm2 |
| Brake | No |
| Shaft Type | Straight shaft |
| Protection Class | IP65 |
| Power Supply | 200 Volts AC |
| Encoder Type | Absolute/Incremental |
| Brand | Mitsubishi |
