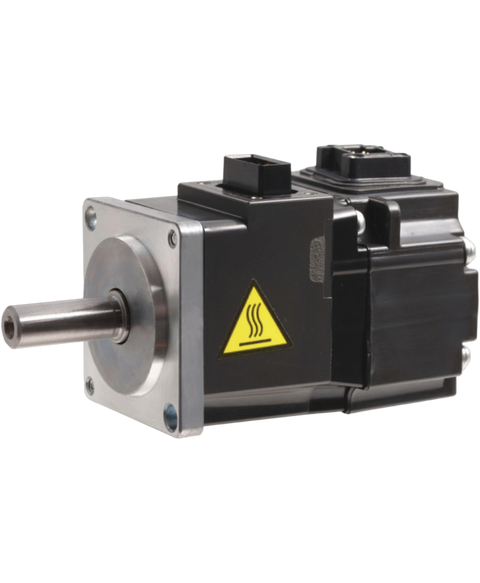

Mitsubishi HG-KR73K
The HG-KR73K servo motor is a Mitsubishi MELSERVO series general-purpose servo motor designed for industrial automation applications. It has a rated output power capacity of 0.75 kW, and its rated torque value is 2.4 Nm. The HG-KR73K servo motor’s maximum torque value of 8.4 Nm. The motor can operate at a rated speed of 3000 rpm and at a maximum speed of 6000 rpm. It features a keyway type of shaft with a key.
This Mitsubishi HG-KR73K is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805427275.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | Servo Motor |
| Product Line | HG Series |
| Part Number | HG-KR73K |
| Weight | 6.00 lbs (2.72 kg) |
| Series | MELSERVO |
| Rated Capacity | 0.75 kW |
| Rated Torque | 2.4 Nm |
| Maximum Torque | 8.4 Nm |
| Rated Speed | 3000 rpm |
| Maximum Speed | 6000 rpm |
| Brake | None |
| Shaft Type | Keyway |
| Shaft Key | Included |
| Ingress Protection | IP65 |
| Voltage Class | 200V AC |
| Encoder Type | 22-bit encoder |
| Encoder Resolution | 4194304 pulses/revolution |
| Brand | Mitsubishi |
