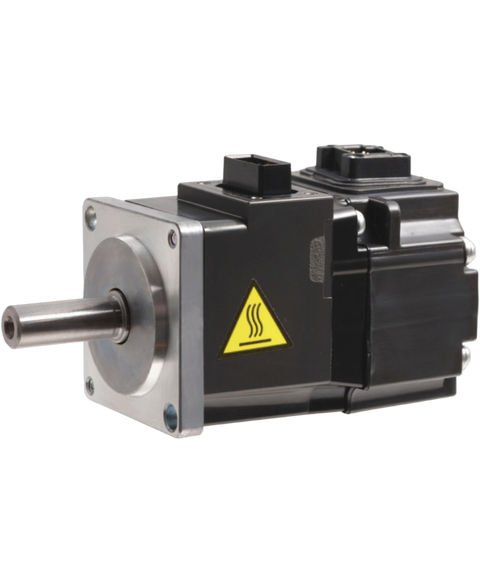

Mitsubishi HG-KR43K
The Mitsubishi HG-KR43K servo motor is a low-inertia and small-capacity servo motor from the MELSERVO series. Its rated output power is 0.4W, its rated torque value is 1.3 Nm, and its maximum torque value is 4.5 Nm. The HG-KR43K motor operates at a rated speed of 3000 rpm. It can reach a maximum speed of 6000 rpm and an instantaneous permissible speed rating of 6900 rpm. Its power rate at the continuous rated torque is 43.7 kW,s, and its rated current is 2.6A. The HG-KR43K motor’s shaft features a keyway and a key.
This Mitsubishi HG-KR43K is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805546391.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | HG Series |
| Part Number | HG-KR43K |
| Weight | 2.88 lbs (1.30 kg) |
| Model Type | Servo motor |
| Series | Low-inertia and small-capacity |
| Rated Output | 0.4W |
| Rated Torque | 1.3 Nm |
| Maximum Torque | 4.5 Nm |
| Rated Speed | 3000 rpm |
| Maximum Speed | 6000 rpm |
| Power Rate at Continuous Rated Torque | 43.7 kW/s |
| Rated Current | 2.6A |
| Maximum Current | 9.1A |
| Speed/Position Detector | 22-bit encoder common to the absolute position/incremental systems |
| Resolution per Servo Motor Revolution | 4194304 pulses/rev |
| Brand | Mitsubishi |
