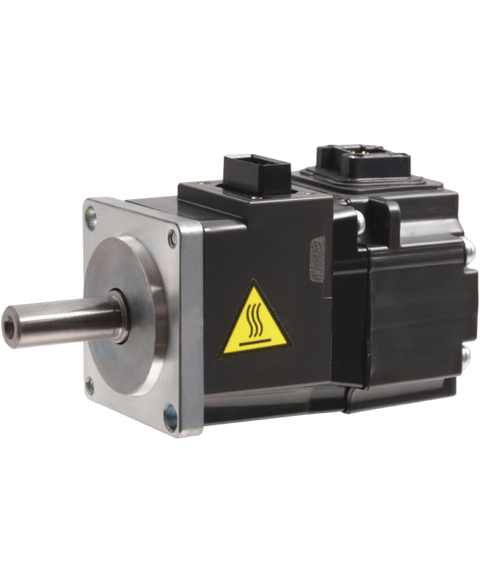

Mitsubishi HG-KR43
The Mitsubishi HG-KR43 Servo Motor from the MELSERVO-J4 series personifies strong power and accuracy. It is an important component in industrial automation thanks to its 0.4 kW capacity and 1.3 Nm torque. It performs well in difficult tasks thanks to its maximum torque of 4.5 Nm and 3000 RPM speed. Durability and effectiveness are ensured by IP65 protection, AC type, and 200V power supply. It is the perfect size for robotics and CNC applications, measuring 60 x 77.1 x 98.3 mm and weighing 1.4 kg.
This Mitsubishi HG-KR43 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26801462056.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | Servo |
| Product Line | HG Series |
| Part Number | HG-KR43 |
| Weight | 2.81 lbs (1.28 kg) |
| Rated Capacity (kW) | 0.4 |
| Rated Torque (Nm) | 1.3 |
| Maximum Torque (Nm) | 4.5 |
| Rated Speed (RPM) | 3000 |
| Maximum Speed (RPM) | 6000 |
| Inertia (kg*cm^2) | 0.371 |
| Brake | No |
| Shaft Type | Straight |
| Protection Class | IP65 |
| Power Supply (V) | 200 VAC |
| Encoder Type | Absolute/Incremental |
| Brand | Mitsubishi |
