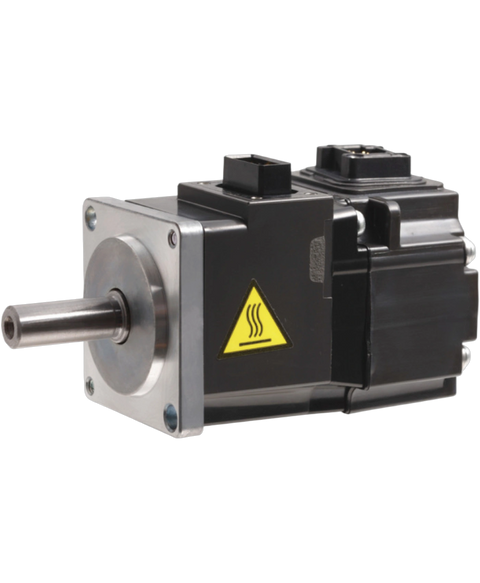

Mitsubishi HG-KR23K
The HG-KR23K is an AC brushless rotary servo motor belonging to the Mitsubishi designed MELSERVO J4 sequencing servos. It comes with a rated output of 200W , 0.2kW; it has a 22-bit (equivalent to 4194304ppr) feedback, a rated current of 1.3 amps, a supply voltage of 200VAC class, a rated torque of 0.64Nm nominal, a rated rotational speed of 3000 rev,min, a 60x60mm flange mounting, an IP65 protection enclosure, and a 4-pin rectangular connector. It operates at 0 to 40 degrees Celsius ambient temperature.
This Mitsubishi HG-KR23K is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805643238.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | AC servo motor |
| Product Line | HG Series |
| Part Number | HG-KR23K |
| Weight | 1.81 lbs (0.82 kg) |
| Product series | MELSERVO J4 (HG-KR) series |
| Supply voltage | 200V class (AC) |
| Rated current | 1.3 amps |
| Rated active power | 200W / 0.2kW |
| Rotational speed | 3000rpm |
| Torque | 0.64Nm nominal |
| Moment of inertia | 0.0000221kg.m2 (0.221kg.cm2) |
| Connection type | 4-pin rectangular connector |
| Maximum radial load | 245 N |
| Maximum axial load | 98 N |
| Cooling System | Natural cooling |
| Ambient air temperature | 0 to 40 °C |
| Brand | Mitsubishi |
