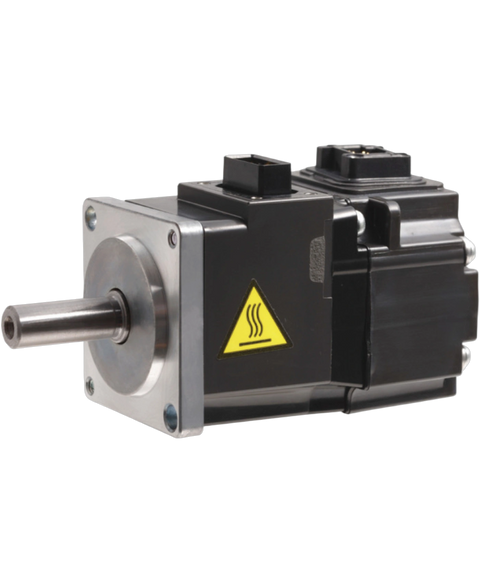

Mitsubishi HG-KR23B
The Mitsubishi Electric-produced HG-KR23B servo motor is a motion control device for industrial automation applications. It enables accurate positioning and torque control with a rated capacity of 0.2 kW and a high-resolution 22-bit encoder. Its goal is to give practical and dependable performance, allowing fluid and precise movement in diverse industrial processes. The motor is appropriate for challenging situations because of its IP65 protection level and vibration resistance, guaranteeing longevity and reliable operation.
This Mitsubishi HG-KR23B is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805427041.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | HG Series |
| Part Number | HG-KR23B |
| Weight | 10.06 lbs (4.56 kg) |
| Series | MELSERVO-J4 |
| Rated Capacity (kW) | 0.2 |
| Rated Torque (Nm) | 0.64 |
| Maximum Torque (Nm) | 2.2 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 6000 |
| Rated Current (A) | 1.3 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP65 |
| Power Supply (V) | 200 |
| Maximum Current (A) | 4.6 |
| Encoder Type | ABSOLUTE/INCREMENTAL |
| Regenerative Braking Frequency (Times/min) | 453 (MR-J4), 451 (MR-J4W_) |
| Brand | Mitsubishi |
