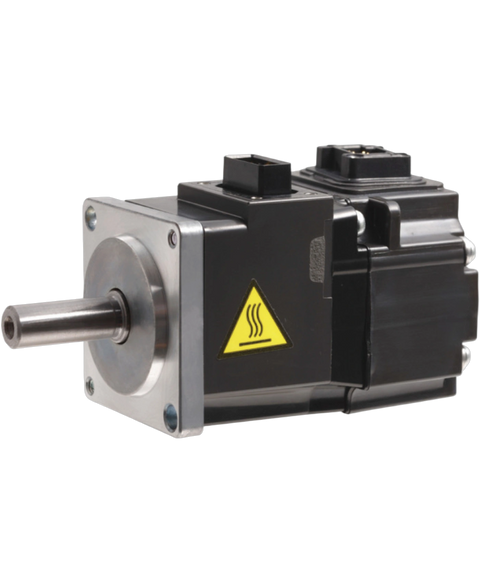

Mitsubishi HG-KR23
The Mitsubishi HG-KR23 is a low-inertia and small-capacity servo motor in the MELSERVO series. Its output power rating is 0.2 kW, its standard torque rating is 0.64 Nm, and its maximum torque rating is 2.2 Nm. The HG-KR23 servo motor operates at 3000 rpm under rated conditions, and it can achieve a maximum speed of 6000 rpm and an instantaneous permissible speed of 6900 rpm. The HG-KR23 motor's rated current is 1.3 A, and its maximum current rating is 4.6 A.
This Mitsubishi HG-KR23 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL27196099444.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | HG Series |
| Part Number | HG-KR23 |
| Weight | 1.88 lbs (0.85 kg) |
| Module Type | Servo motor |
| Series | Low-inertia/small-capacity |
| Rated Output | 0.2 kW |
| Rated Torque | 0.64 Nm |
| Maximum Torque | 2.2 Nm |
| Rated Speed | 3000 rpm |
| Maximum Speed | 6000 rpm |
| Instantaneous Permissible Speed | 6900 rpm |
| Power Rate at Continuous Rated Torque | 18.3 kW/s |
| Rated Current | 1.3 A |
| Maximum Current | 4.6 A |
| Recommended Load-to-Motor Inertia Ratio | 26 times or less |
| Structure | Totally-enclosed, natural cooling (IP rating: IP65) |
| Brand | Mitsubishi |
