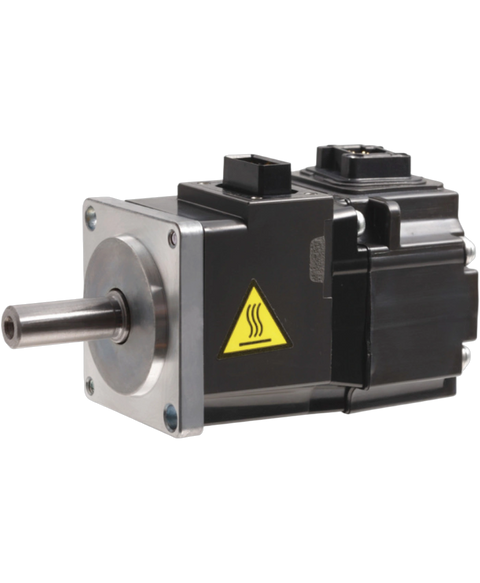

Mitsubishi HG-KR053
The Mitsubishi HG-KR053 servo motor is a member of the MELSERVO series. It is a low inertia,small-capacity servo motor with a standard shaft shape. With a rated speed of 3000 rpm and a maximum speed rating of 6000 rpm, it provides precise and rapid motion control. The HG-KR053 servo motor's rated output power is 0.05 kW. Its rated torque is 0.16 Nm, and its maximum torque is 0.56 Nm.
This Mitsubishi HG-KR053 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL27228324206.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | HG Series |
| Part Number | HG-KR053 |
| Weight | 1.00 lbs (0.45 kg) |
| Model Type | Servo motor |
| Series | MELSERVO |
| Shaft Shape | Standard |
| Rated Speed | 3000 rpm |
| Maximum Speed | 6000 rpm |
| Rated Output | 0.05kW |
| Rated Torque | 0.16 Nm |
| Maximum Torque | 0.56 Nm |
| Power Rate at Continuous Rated Torque | 5.63 kW/s |
| Rated Current | 0.9 A |
| Maximum Current | 3.2A |
| Recommended Load/Motor Inertia Moment Ratio | 17 times or less |
| Speed/Position Detector | 22-bit encoder common to the absolute position/incremental systems (resolution per servo motor revolution: 4194304 pulses/rev) |
| Brand | Mitsubishi |
