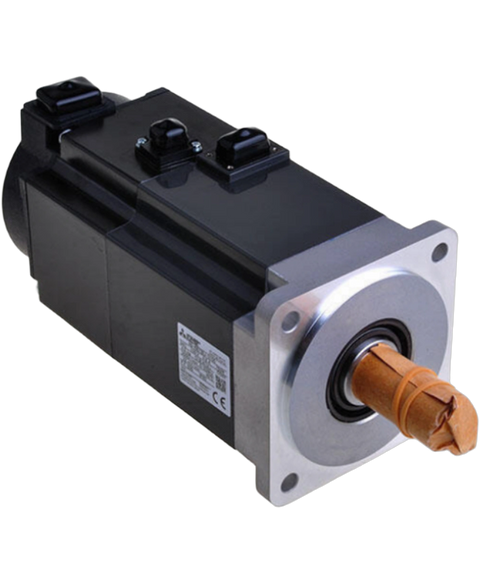

Mitsubishi HG-KN73J-S100
The HG-KN73J-S100 model from Mitsubishi's HG Series is an AC rotary servo motor designed to meet the demands of small power applications. Operating at a rated speed of 3000 RPM, this unit can reach a maximum speed of 5000 RPM, enabling efficient system performance across a range of conditions.
This Mitsubishi HG-KN73J-S100 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805673055.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | HG Series |
| Part Number | HG-KN73J-S100 |
| Weight | 6.94 lbs (3.15 kg) |
| Capacity | Small Power Capacity |
| Inertia | Low Inertia |
| Rotational Speed | 3000 RPM |
| Maximum Speed | 5000 RPM |
| Rated Torque | 2.4 Nm Nominal |
| Supply Voltage Class | 200V AC Class |
| Maximum Torque | 7.2 Nm |
| Shaft | Straight Shaft |
| Structure | TENC (Totally Enclosed Natural Cooling) Structure |
| Operating Temperature | 0 to +40°C |
| IP rating | IP65 |
| Storage Temperature | -15 to +70 °C |
| Rated Current | 4.8 Amps |
| Maximum Current | 14 Amps |
| Brand | Mitsubishi |
