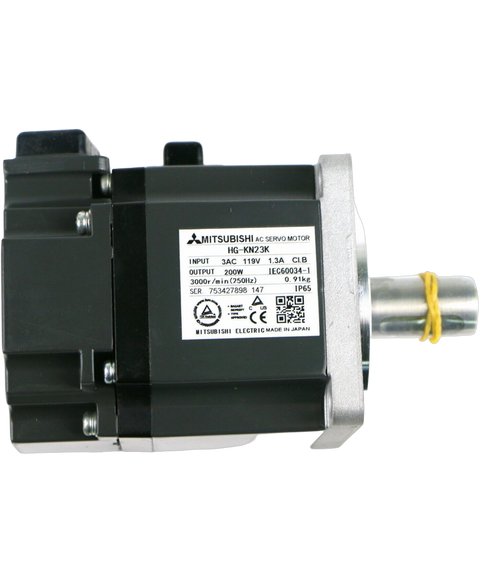

Mitsubishi HG-KN23K
The HG-KN23K, belonging to Mitsubishi's HG Series, functions as a low inertia AC servo motor. It operates efficiently at a rated speed of 3,000 RPM and includes a built-in 17-bit absolute feedback encoder, enhancing precision and control.
This Mitsubishi HG-KN23K is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805435593.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Line | HG Series |
| Part Number | HG-KN23K |
| Weight | 2.00 lbs (0.91 kg) |
| Current Rating | 1.3 Amps |
| Type of Shaft | Shaft with Keyway and Key |
| Rated Motor Speed | 3,000 revolutions per minute (RPM) |
| TENC Structure | Yes |
| Rated Torque | 0.64 Newton-meters |
| Encoder Type | Built-In 17-Bit Absolute Feedback Encoder |
| Supply Voltage Class | 200 Volts AC Class |
| Brake Type | No Brake |
| Mounting Mode | Flange Mounting |
| Encoder Resolution | 131072 Pulses Per Revolution (17-Bit) |
| Flange Size | 2.36 x 2.36 inches (60 x 60 millimeters) |
| Maximum Current | 3.9 Amps |
| Maximum Torque | 1.9 Newton-meters |
| Power Capacity | Small Capacity |
| Product | Low Inertia AC Servo Motor |
| Brand | Mitsubishi |
