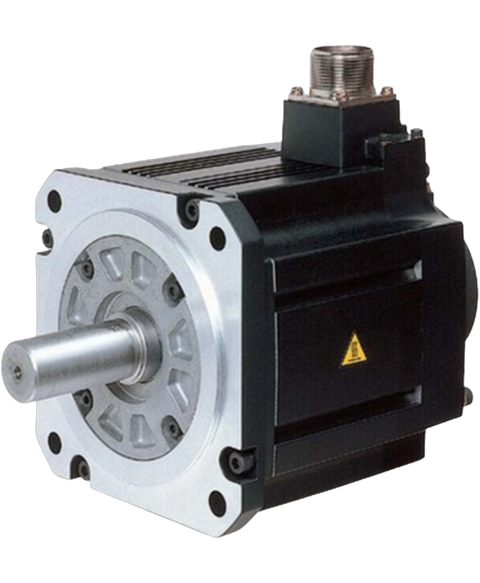

Mitsubishi HF-SP7024B
Mitsubishi's HF-SP7024B is a brushless servo motor classified under the HF Series. Designed for efficient performance, it features a rated speed of 2000 RPM. It can achieve maximum speeds of 3000 RPM, making it capable of handling demanding applications with an output rating of 7 kW.
This Mitsubishi HF-SP7024B is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805415312.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | Brushless Servo Motor |
| Product Line | HF Series |
| Part Number | HF-SP7024B |
| Weight | 41.44 lbs (18.80 kg) |
| Rated Speed | 2000 RPM |
| Maximum Speed | 3000 RPM |
| Output Rating | 7 kW |
| Supply Voltage Class | 400VAC Class |
| Type of Enclosure | IP67 |
| Shaft Type | Standard Straight Type |
| Power Supply Voltage Range | 380 to 480 Volts AC |
| Voltage Type | Three-Phase AC Voltage |
| Electromagnetic Brake | Included |
| Feedback Encoder | 18-Bit Feedback Encoder |
| Nominal Torque | 33.4 Nm |
| Reduction Gear | None |
| Oil Seal | Not Included |
| Maximum Torque | 100 Nm |
| Brand | Mitsubishi |
